Big Tex 14RB
Call (406) 549-4243 For More Information
Roll-Off Bumper Pull Dump
Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 14RB Roll-Off Bumper Pull Dump
Equipped with the most requested features to support the demands of the construction, junk removal, and even the dumpster rental business, the durable 14RB Roll-Off Bumper Pull Dump is built with professional-grade parts and is designed to withstand the rigors of everyday use. From a strong I-beam frame design and scissor-hoist lifting system to an industry-leading heavy-duty winch, the 14RB offers a convenient and cost-effective solution for servicing multiple job sites with a single trailer.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 14' | 5,590# | 83" x 14' Roll-Off Bumper Pull Dump |
Features/Specifications
Features
| AXLE | (2) 7,000# Axles w/ Quick Lubricating Hubs amd Elec. Brakes |
|---|---|
| JACK | 12,000# Side Wind Drop Leg |
| TIRE | ST235/80 R-16 Load Range E |
| FLOOR | 10 Gauge Smooth Steel |
| WHEEL | 16" x 6"; Black Mod, 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. Stop, Turn, and Tail Clearance |
| TONGUE | Integral with Frame (8" I-Beam, 10#) |
| COUPLER | Adjustable 2-5/16" Demco EZ Latch |
| FENDERS | 10" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 14,000# |
|---|---|
| ELEC. PLUG | 7-way RV |
| MAIN FRAME | 8" I-Beam, 10# |
| SUSPENSION | Multi-Leaf Slipper Spring w/ Equalizer |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2ea) |
| DUMP BODY SIDES | 48" Tall |
| DUMP BODY TOP RAIL | 4" x 3" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 7,000# |
| DUMP BODY CROSSMEMBERS | 3" Channel, 16" Centers |
Specifications
Big Tex 14RB Roll-Off Bumper Pull Dump
| Model | Description |
|---|---|
| 14RB-14 | 83" x 14' Roll-Off Bumper Pull Dump |

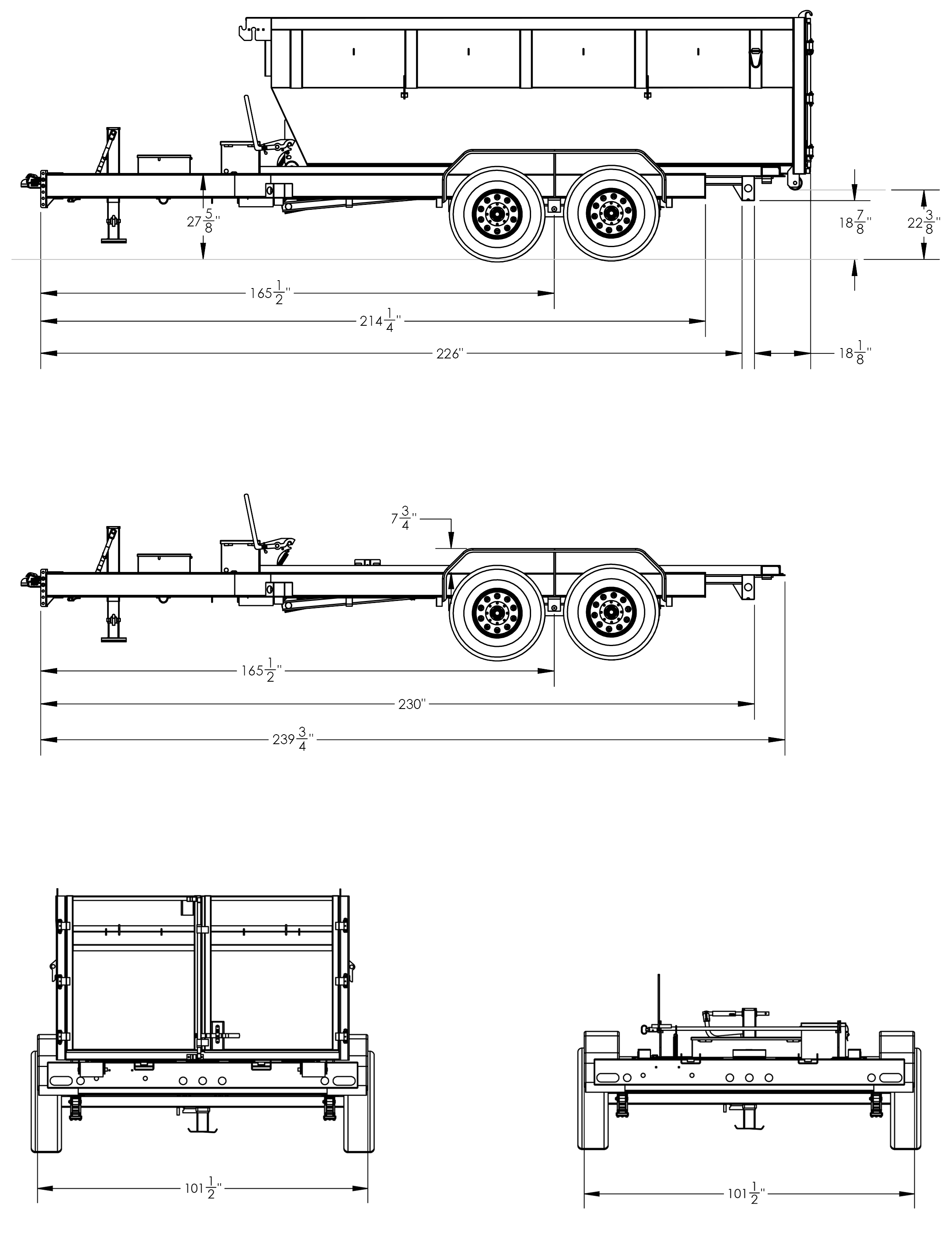

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 14' |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 14' | 5,590# | 8,410# | 13 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" Demco EZ Latch Coupler
- 8" I-Beam Frame with Integrated Tongue
- 12,000# Spring Loaded Drop Leg Jack
- Lockable Pump and Battery Box Mounted on front of Bed
- Side Steps
- Power Up/Power Down Hydraulic Pump
- Bin Securement Safety Chain
- Greasable Rollers on Frame
- 12V Interstate Deep Cycle Battery to Power Hoist
- Self-Contained and Independently Wired Winch Power Station
- Specially Designed High Duty Cycle 15K Winch
- Group 24 AGM Deep Cycle Battery for Winch
- (2) 110V on-board Battery chargers (5 Amp) One for Hoist, One for Winch
- Premium Brand Axles
- Cambered Axles w/ Quick Lubricating Hubs
- Forward Self-Adjusting Electric Brakes on all Hubs
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- Diamond Plate Fenders
- Spare Tire Mount
- Radial Tires3
- 48" tall, 12 Gauge sides
- 10 gauge steel floor
- 4" x 3" Rectangular Tubing Top Rail
- 13 Cubic Yard Aggregate Capacity
- Crank Style Roll Tarp- Standard equippped
- Tarp Rod included to secure Tarp on Rear
- J-hooks on sides and rear for Tarp Control
- (4) D-Rings mounted on inside side walls
- Barn Door Rear Gates
- Greasable Rollers on Bin
Optional Equipment
| Category | Description |
|---|---|
| COUPLER | Adjustable Pintle in Channel ILO |
| JACKS | 12,000# Elec/Hyd. Jack BY |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote for Hoist |
| POWER | Wireless Remote for Winch |
| TIRE/WHEEL | Spare Tire (ST235/80 R-16 LR-E) |
| TIRE/WHEEL | Spare Tire Upgrade (ST235/80 R-16 LR-G) |
| TIRE/WHEEL | Tire Upgrade (ST235/80 R-16 LR-G) |
