Mega Duty Tandem Axle Dump
The biggest jobs demand the toughest trailers. With a mega-duty GVWR of 20,000 lbs, the 20LP Mega Duty Tandem Axle Dump has the strength, durability, and power required to perform in the most challenging industries. Equipped with 10,000 lbs. Torsion Axles with Super Single Wheels for heavy-weight hauling tasks, this trailer delivers peak performance when the going gets tough. 7-Gauge steel floor? Yup. 10 I-beam frame? Of course. 3 high sides? Absolutely. And that all makes the 20LP one of the strongest single wheel tandem axle dump trailers on the market. Better yet, a low-profile design and optional slide-in ramps make it easier to use when loading and unloading heavy equipment, and its fully loaded with extras such as a tarp kit, rear stabilizer stands, and scissor hoist to help you tackle any job.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 20LP Mega Duty Tandem Axle Dump
The biggest jobs demand the toughest trailers. With a mega-duty GVWR of 20,000 lbs, the 20LP Mega Duty Tandem Axle Dump has the strength, durability, and power required to perform in the most challenging industries. Equipped with 10,000 lbs. Torsion Axles with Super Single Wheels for heavy-weight hauling tasks, this trailer delivers peak performance when the going gets tough. 7-Gauge steel floor? Yup. 10 I-beam frame? Of course. 3 high sides? Absolutely. And that all makes the 20LP one of the strongest single wheel tandem axle dump trailers on the market. Better yet, a low-profile design and optional slide-in ramps make it easier to use when loading and unloading heavy equipment, and its fully loaded with extras such as a tarp kit, rear stabilizer stands, and scissor hoist to help you tackle any job.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 16' | 6,130# | 82-1/2" x 16' Mega Duty Tandem Axle Dump |
Features/Specifications
Features
| AXLE | (2) 10,000# Oil Bath w/Electric Brakes |
|---|---|
| JACK | 12,000# Side Wind Drop Leg |
| NECK | Integral with Frame (10" I-Beam, 19#) |
| TIRE | ST235/75 R-17.5 Load Range J |
| FLOOR | 7 Gauge Smooth Steel |
| WHEEL | 17.5" x 6.75"; Black Mod, 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish. |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn and Clearance |
| COUPLER | Adjustable 2-5/16" 21,000# Demco EZ Latch |
| FENDERS | 9" x 72" 14 Ga. Diamond Plate Double Square Broke |
| G.V.W.R. | 20,000# |
|---|---|
| ELEC. PLUG | 7-Way RV |
| MAIN FRAME | 10" I-Beam 19# |
| SUSPENSION | Torsion Axles |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional Smooth Finish. |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) WHEEL |
| DUMP BODY SIDES | 36" Tall Sides (10 Gauge) |
| DUMP BODY TOP RAIL | 3" x 2" Rectangular Tubing |
| G.A.W.R. (Ea. Axle) | 10,000# |
| DUMP BODY CROSSMEMBERS | 3" Channel, 16" Centers |
Specifications
Big Tex 20LP Mega Duty Tandem Axle Dump
| Model | Description |
|---|---|
| 20LP-16 | 82-1/2" x 16' Mega Duty Tandem Axle Dump |

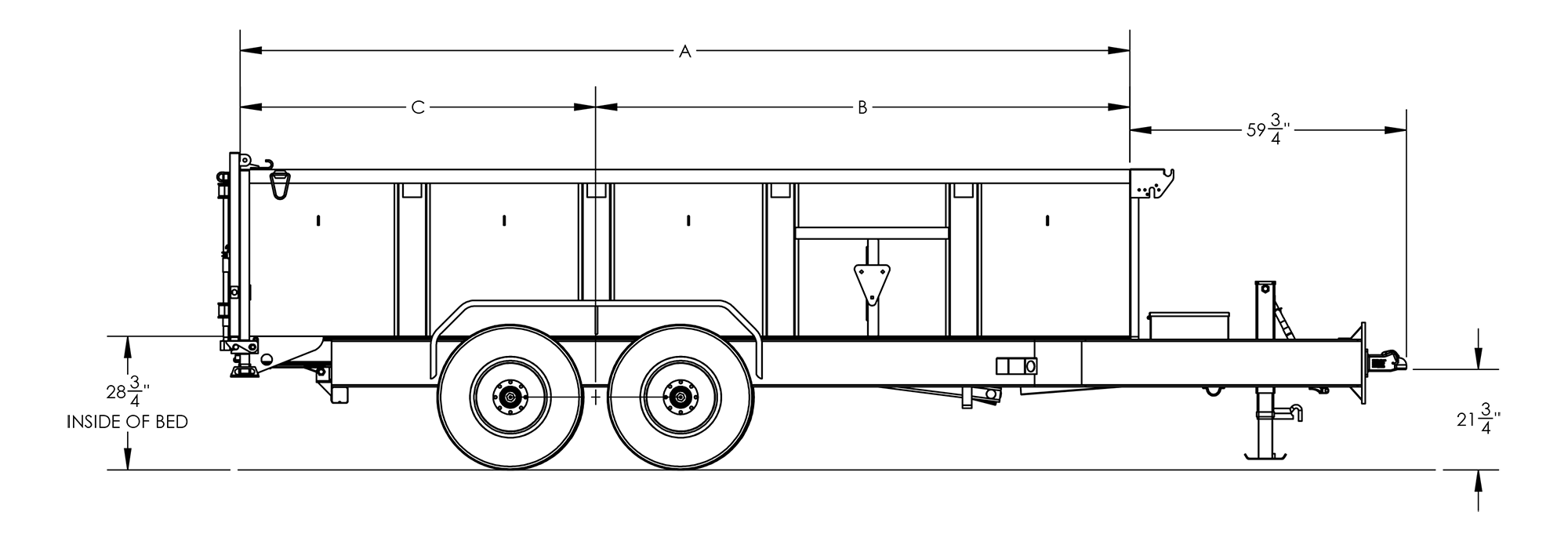

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 16' | 192" | 115-3/4" | 76-1/4" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 16' | 6,130# | 13,870# | 8.3 Cubic Yards |
Standard/Optional Equipment
Standard Equipment
- Adjustable 2-5/16" 21,000# Demco EZ Latch
- 10" I-Beam Frame w/ Integrated Tongue
- 12,000# Top Wind Drop-Leg Jack
- Lockable Pump and Battery Box Mounted in Front of Bed
- 36" Tall, 10 Gauge Sides w/Formed Channel Supports
- 7 Gauge Steel Floor
- Fully Formed Tarp Shroud on Front
- Crank Style Roll Tarp- Standard Equipped
- Tarp Rod Included to Secure Tarp on Rear
- J-Hooks on Sides and Rear for Tarp Control
- Stakepockets Along Sides
- Self Contained Electric/Hydraulic Scissor Hoist
- Power Up/Power Down Hydraulic Pump
- 12V Interstate Deep Cycle Battery
- 110V On-Board Battery Charger (5 Amp)
- Cambered Torsion Axles w/ Oil Bath Hubs
- Forward Self Adjusting Electric Brakes on All Hubs
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Sealed, Modular Wiring Harness
- Complete Break-A-Way System
- Zip Breakaway Cable
- Diamond Plate Steel Fenders
- 3" x 2" Rectangular Tubing Top Rail on Dump Bed
- Combo Gate (Barn Doors and Spreader Gate)
- Rear Stabilizer Stands
- (4) 1/2" D-Rings Inside Bed to Secure Equipment
- Spare Tire Mount
- Radial Tires
- Spare Tire and Wheel- Standard Equipped
Optional Equipment
| Category | Description |
|---|---|
| BODY | 4 Solid Sheet Metal Sides |
| JACKS | 12,000# Elec/Hyd. Jack BY Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote |
| RAMPS | 6.5 Slide In Ramp Package |
