Big Tex 25GN-HDTS
Call (406) 549-4243 For More Information
Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer
For those dealing with the heaviest hauls in construction and industrial operations, you need a trailer that doesnt back down from any challenge. You need the 25GN-HDTS Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer, specifically designed and built for those who transport extremely heavy equipment and machinery. Equipped with 12K heavy-duty axles and premium adjustable suspension, the 25GN-HDTS has a 25,900 lbs G.V.W.R. in order to handle the biggest jobs. Its also why we outfitted this powerful and durable trailer with a standard low-profile pierced-beam frame, LED lights, adjustable dual jacks, and a crank-style adjustable coupler; everything a professional needs to finish their workday. Because when a load is large, the 25GN-HDTS answers the call.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 25GN-HDTS Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer
For those dealing with the heaviest hauls in construction and industrial operations, you need a trailer that doesnt back down from any challenge. You need the 25GN-HDTS Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer, specifically designed and built for those who transport extremely heavy equipment and machinery. Equipped with 12K heavy-duty axles and premium adjustable suspension, the 25GN-HDTS has a 25,900 lbs G.V.W.R. in order to handle the biggest jobs. Its also why we outfitted this powerful and durable trailer with a standard low-profile pierced-beam frame, LED lights, adjustable dual jacks, and a crank-style adjustable coupler; everything a professional needs to finish their workday. Because when a load is large, the 25GN-HDTS answers the call.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 35' (26'+9') | 8,960# | 102" x 35' (26' + 9') HD TD Gooseneck w/ Hydraulic Dovetail |
| 40' (31'+9') | 9,920# | 102" x 40' (31' + 9') HD TD Gooseneck w/ Hydraulic Dovetail |
Features/Specifications
Features
| AXLE | (2) 12,000# Dual Wheel w/ Electric Brakes (Oil Bath) |
|---|---|
| JACK | Dual Two Speed Landing Gear (Bolted On) |
| NECK | 12" I-Beam, 19# |
| TIRE | ST235/80 R-16 Load Range E Dual |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 12" I-Beam, 19# |
| WHEEL | 16" x 6"; Black Dual 8 Bolt |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| COUPLER | 2-5/16" Ball Adj. Square Crank Type |
| DOVETAIL | 5 Cleated Dovetail w/5 Double Hinged, Spring-Assisted Flip-Over Ramps |
| G.V.W.R. | 25,900# |
|---|---|
| TOP RAIL | NONE |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Gooseneck |
| SIDE RAILS | 8" Channel w/Rub Rail, Tie Down Pockets on 24" Centers, and Chain Spools |
| SUSPENSION | Heavy Duty 30,000# Adjustable |
| CROSSMEMBERS | 3" Channel |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 3/8" Grd. 70 w/Safety Latch Hook (2 each) |
| G.A.W.R. (Ea. Axle) | 12,000# |
Specifications
Big Tex 25GN-HDTS Heavy Duty Tandem Dual Wheel GN Hydraulic Dovetail Trailer
| Model | Description |
|---|---|
| 25GN-35-HDTS | 102" x 35' (26' + 9') HD TD Gooseneck w/ Hydraulic Dovetail |
| 25GN-40-HDTS | 102" x 40' (31' + 9') HD TD Gooseneck w/ Hydraulic Dovetail |

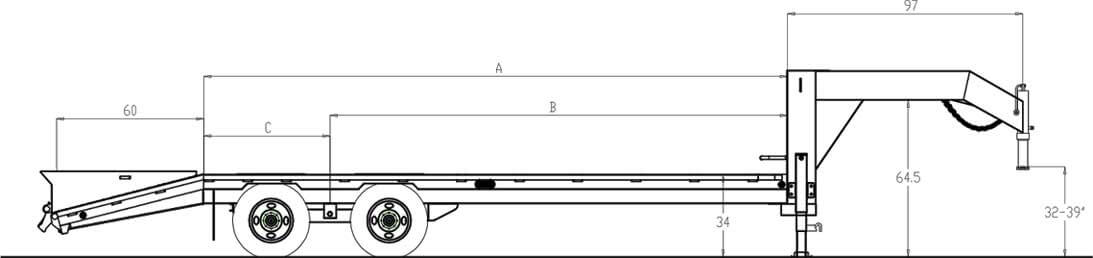

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 35' (26'+9') | 312" | 259" | 53" |
| 40' (31'+9') | 372" | 319" | 53" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 35' (26'+9') | 8,960# | 16,940# | N/A |
| 40' (31'+9') | 9,920# | 15,980# | N/A |
Standard/Optional Equipment
Standard Equipment
- 9 Hydraulic Dovetail w/6" Channel Side Rails
- Diamond Plate Knife Edge on Rear
- Cleated Dovetail w/ Wood Between Runners
- Collapsible Rear Bumper
- Innovative Sled-Design Locking/Lifting System
- Lockable Side Mount Tool Box Houses Power Unit
- 2-5/16" Ball Adjustable Coupler- Square Crank Type
- Dual Two Speed Landing Gear 50K Capacity (Bolted On)
- 102" Overall Width
- Low Profile Bed, Pierced- Beam Frame
- Lockable Toolbox Between GN Uprights
- (2) Side Bed Steps & Handles
- 3/8" Heavy Duty Rub Rail
- Stake Pockets Along Sides, 24" On Center
- 1-1/4" Pipe Chain Spools Between Tie Down Pockets
- Premium Brand Axles
- Oil Bath Hubs
- Forward Self Adjusting Brakes
- Heavy Duty 30,000# Adjustable Suspension
- Torque Tube- Standard Equipped
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Modular Sealed Wiring Harness
- Spare Tire Mount (Top of Neck)
- Complete Break-A-Way System w/Charger
- Zip Breakaway Cable
- Radial Tires
- Spare Tire & Wheel- Standard Equipped
- Dovetail Lifting Capacity Approx. 8,000#
- Dovetail Carrying Capacity Approx. 4,000# (From Middle of Dovetail, Forward)
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Removable Deck on the Neck- Bolt On (8 W x 6 L) |
| BRAKES | Air Brake Assembly w/ABS on Front, Spring Brake Chambers and Auto Slacks |
| BRAKES | Electric Over Hydraulic Brakes (Disc) |
| BRAKES | Electric Over Hydraulic Brakes (Drum) |
| CARGO CONTROL | 4" Sliding Winch |
| CARGO CONTROL | 4" Weld-On Winch |
| CARGO CONTROL | 4" x 30 Strap |
| CARGO CONTROL | B 40 5/8" D-Ring |
| CARGO CONTROL | Low Profile Tool Box 12" x 12" x 36" (Side Mount) |
| CARGO CONTROL | Sliding Winch Track (Per 6 Section) |
| JACKS | Dual Electric Over Hydraulic Jacks by Stillwell |
| POWER | 5 Watt Solar Charger |
| POWER | Wireless Remote for Power Unit |
| TIRE/WHEEL | Tire Upgrade (ST215/75 R-17.5 LR-H Dual) Includes Spare |
| TIRE/WHEEL | Tire Upgrade (ST235/85 R-16 LR-G Dual) Includes Spare |
