Big Tex 35SA-RSX
Call (406) 549-4243 For More Information
Single Axle ATV Trailer
Specifically designed and built for homeowners and outdoor enthusiasts hauling ATVs and larger side-by-sides, the rugged and dependable 35SA-RSX Single Axle ATV Trailer is equipped to handle the job. Thats why its outfitted with a heavy-duty 4" frame, square rail, ramp sides, and, most importantly, a wider 83 deck. All that extra space makes it easier to load and unload side-by-sides and landscaping equipment - meaning youll spend less time trying to figure out how to haul your toys and more time having fun with them.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 35SA-RSX Single Axle ATV Trailer
Specifically designed and built for homeowners and outdoor enthusiasts hauling ATVs and larger side-by-sides, the rugged and dependable 35SA-RSX Single Axle ATV Trailer is equipped to handle the job. Thats why its outfitted with a heavy-duty 4" frame, square rail, ramp sides, and, most importantly, a wider 83 deck. All that extra space makes it easier to load and unload side-by-sides and landscaping equipment - meaning youll spend less time trying to figure out how to haul your toys and more time having fun with them.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 12' | 1,140# | 83" x 12' Single Axle ATV Trailer |
| 14' | 1,220# | 83" x 14' Single Axle ATV Trailer |
Features/Specifications
Features
| AXLE | 3,500# Quick Lubricating Axle w/ Brake Flanges |
|---|---|
| JACK | 2,000# Top Wind, Set-Back Jack |
| TIRE | ST205/75R-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 4" x 3" x 1/4" Angle |
| WHEEL | 15" x 5; Black Mod, 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 3" Channel |
| COUPLER | 2" A-Frame |
| FENDERS | 9" x 32" Rolled Formed w/ Back |
| G.V.W.R. | 2,995# |
|---|---|
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 14" Tall Angle, 2" x 2" x 1/8" Angle |
| ELEC. PLUG | 4-Way Flat w/ Loom |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 30 w/ Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 35SA-RSX Single Axle ATV Trailer
| Model | Description |
|---|---|
| 35SA-12RSX | 83" x 12' Single Axle ATV Trailer |
| 35SA-14RSX | 83" x 14' Single Axle ATV Trailer |

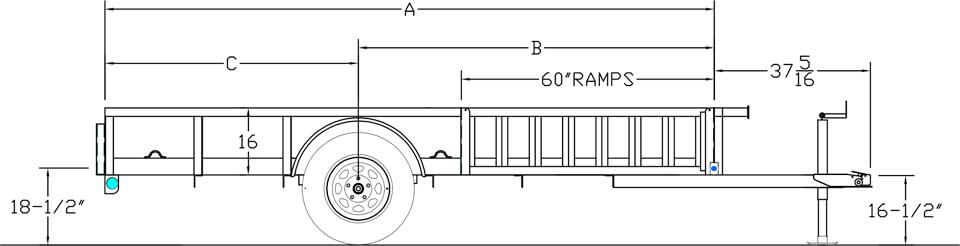

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 97" | 72-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 1,140# | 1,855# | N/A |
| 14' | 1,220# | 1,775# | N/A |
Standard/Optional Equipment
Standard Equipment
- (6) Tie-Down Loops Inside Bed
- Quick Lubricating Hubs
- Premium Brand Axle
- Durable Pipe Top Rail
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Front Spare Tire Mount Standard
- Radial Tires
- Brake Flanges on Axle for Easy Brake Addition
- Removable Sand Foot on Jack
- A-Frame Channel Tongue
- Rear Tailboard Channels (Deleted if Rampgate Added)
- (2) 5 Square Tubing ATV Ramp Sides
- Ramps Can be Used on Either Sides and on Rear
Optional Equipment
| Category | Description |
|---|---|
| BODY | Blackwood Pro Rubber Infused Floor |
| BRAKES | Electric Brakes w/ Complete Brake-Away Kit |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pockets |
| COUPLER | 2" Forged Coupler |
| JACK | 2,000# Fold-Up Jack |
| RAMPS | 4 Tall Bi-Fold Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 4 Tall Rear Rampgate (83" Wide) |
| RAMPS | 5 Tall Rear Rampgate (83" Wide) |
| TIRE/WHEEL | Spare Tire and Wheel (ST 205/75R-15 LR-C) |
