Big Tex 60ES
Call (406) 549-4243 For More Information
Economy Tandem Axle Utility Trailer
With the 60ES Tandem Axle Utility Trailer, cost-effective versatility is the name of the game. That means youre getting a dependable and reliable utility trailer thats designed to transport small equipment and recreational vehicles, all at an affordable price point. And with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength, it has the muscle to make sure your small tractors, side-by-sides, and favorite toys get to their destination - safely and securely.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 60ES Economy Tandem Axle Utility Trailer
With the 60ES Tandem Axle Utility Trailer, cost-effective versatility is the name of the game. That means youre getting a dependable and reliable utility trailer thats designed to transport small equipment and recreational vehicles, all at an affordable price point. And with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength, it has the muscle to make sure your small tractors, side-by-sides, and favorite toys get to their destination - safely and securely.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 12' | 1,430# | 77" x 12' Economy Tandem Axle Pipe Top Utility Trailer |
| 14' | 1,480# | 77" x 14' Economy Tandem Axle Pipe Top Utility Trailer |
| 16' | 1,525# | 77" x 16' Economy Tandem Axle Pipe Top Utility Trailer |
Features/Specifications
Features
| AXLE | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| JACK | 2,000# Top Wind |
| TIRE | ST205/75D-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 3" x 2" x 3/16" Angle |
| WHEEL | 15" x 5"; Silver Mod, 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 4" Channel |
| COUPLER | 2" A-Frame |
| FENDERS | 9" x 72" Rolled Formed w/Back |
| G.V.W.R. | 6,000# |
|---|---|
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 15" Tall 2" x 2" x 1/8" Angle |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 30 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3500# |
Specifications
Big Tex 60ES Economy Tandem Axle Utility Trailer
| Model | Description |
|---|---|
| 60ES-12 | 77" x 12' Economy Tandem Axle Pipe Top Utility Trailer |
| 60ES-14 | 77" x 14' Economy Tandem Axle Pipe Top Utility Trailer |
| 60ES-16 | 77" x 16' Economy Tandem Axle Pipe Top Utility Trailer |

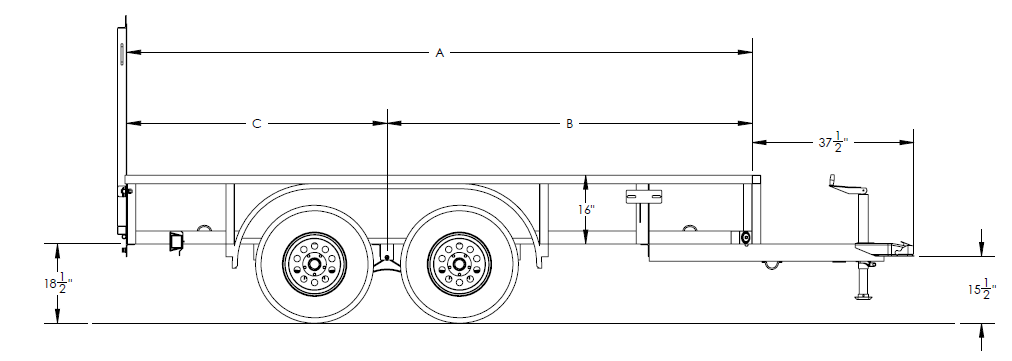

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 12' | 121-1/2" | 85" | 60-1/2" |
| 14' | 145-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 1,430# | 4,570# | N/A |
| 14' | 1,480# | 4,520# | N/A |
| 16' | 1,525# | 4,475# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Quick Lubricating Hubs
- Premium Brand Axles
- Cambered Axles
- Forward Self Adjusting Electric Brakes
- Complete Break-A-Way System w/Charger
- Durable Tubing Top Rail
- Removable Sand Foot on Jack
Optional Equipment
| Category | Description |
|---|---|
| BRAKES | Electric Brakes on 2nd Axle |
| RAMPS | 4 Tall Rear Rampgate |
| TIRE/WHEEL | Spare Tire (ST205/75D-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
