Big Tex 60PI
Call (406) 549-4243 For More Information
Tandem Axle Pipe Top Utility Trailer
Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. Its built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.
(406) 549-4243- Overview
- Features/Specifications
- Standard/Optional Equipment
Overview
Big Tex 60PI Tandem Axle Pipe Top Utility Trailer
Ready to haul light-duty equipment wherever a job needs doing, the durable and reliable 60PI Tandem Axle Pipe Top Utility Trailer is designed to make equipment transportation easy. Its built to tackle the toughest jobs with a 6,000 lbs G.V.W.R. and reinforced structure for enhanced strength. In other words, it has the brawn to safely and securely get small tractors and side-by-sides to where they need to go. Plus, optional slide-in ramps make loading and unloading even easier, helping you focus on the task at hand.
| SIZE | WEIGHT | DESCRIPTION |
|---|---|---|
| 12' | 1,265# | 77” x 12' Tandem Axle Pipe Top Utility Trailer |
| 14' | 1,400# | 77” x 14' Tandem Axle Pipe Top Utility Trailer |
| 16' | 1,535# | 77” x 16' Tandem Axle Pipe Top Utility Trailer |
Features/Specifications
Features
| AXLE | (2) 3,500# Quick Lubricating w/ (1) Elec. Brake |
|---|---|
| JACK | 2,000# Top Wind, Set-Back Jack |
| TIRE | ST205/75R-15 Load Range C |
| FLOOR | 2" Treated Pine or Douglas Fir* |
| FRAME | 3" x 2" x 3/16" Angle |
| WHEEL | 15" x 5"; Black Mod, 5 on 5 Bolt Pattern |
| FINISH | Superior Quality Finish is Applied for a Highly Decorative and Protective Finish |
| LIGHTS | L.E.D. D.O.T. Stop, Tail, Turn & Clearance |
| TONGUE | 4" Channel |
| COUPLER | 2" A-Frame |
| FENDERS | 9" x 72" Rolled Formed w/Back |
| G.V.W.R. | 6,000# |
|---|---|
| TOP RAIL | 2" x 2" Square Tubing |
| UPRIGHTS | 2" x 2" x 1/8" Angle |
| ELEC. PLUG | 7-Way RV |
| HITCH TYPE | Bumper Pull |
| SUSPENSION | Multi-Leaf Spring w/ Equalizer |
| CROSSMEMBERS | 3" x 2" x 3/16" Angle |
| FINISH (Prep) | Steel is Cleaned to Ensure a Professional, Smooth Finish |
| SAFETY CHAINS | 1/4" Grd. 30 w/Safety Latch Hook (2 ea) |
| G.A.W.R. (Ea. Axle) | 3,500# |
Specifications
Big Tex 60PI Tandem Axle Pipe Top Utility Trailer
| Model | Description |
|---|---|
| 60PI-12 | 77” x 12' Tandem Axle Pipe Top Utility Trailer |
| 60PI-14 | 77” x 14' Tandem Axle Pipe Top Utility Trailer |
| 60PI-16 | 77” x 16' Tandem Axle Pipe Top Utility Trailer |

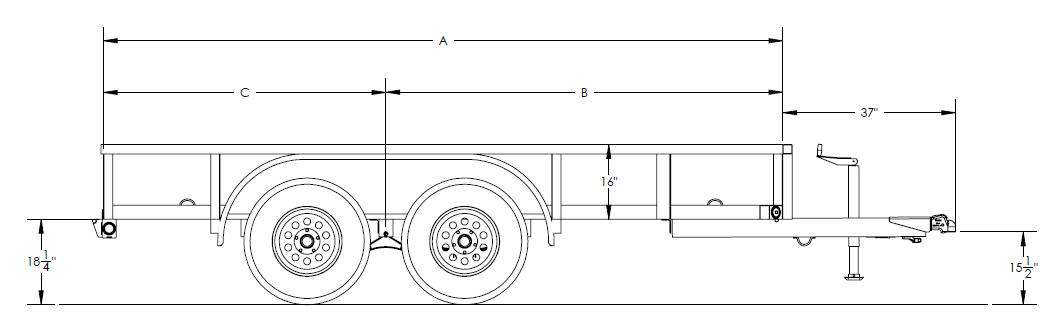

Dimensions
| Length | A | B | C |
|---|---|---|---|
| 12' | 145-1/2" | 85" | 60-1/2" |
| 14' | 169-1/2" | 103" | 72-1/2" |
| 16' | 193-1/2" | 115" | 78-1/2" |
Trailer Weights & Capacities
| Length | Empty Weight | Payload | Box Capacity |
|---|---|---|---|
| 12' | 1,265# | 4,735# | N/A |
| 14' | 1,400# | 4,600# | N/A |
| 16' | 1,535# | 4,465# | N/A |
Standard/Optional Equipment
Standard Equipment
- (4) Tie Down Loops Inside Bed
- Set-Back Jack
- Quick Lubricating Hubs
- Premium Brand Axles
- Forward Self Adjusting Electric Brakes
- Cambered Axles
- Grommet Mount Sealed Lighting
- L.E.D. Lighting Package
- Protected Wiring
- Removable Sand Foot on Jack
- Complete Break-A-Way System w/Charger
- Radial Tires
Optional Equipment
| Category | Description |
|---|---|
| BODY | 1/8" Diamond Plate Steel Floor |
| BODY | 2 High Sides (Open) |
| BODY | 3 High Sides (Open) |
| BODY | 4 High Sides (Open) |
| BODY | Blackwood Pro Rubber Infused Floor |
| BODY | Enclose Sides w/ Expanded Metal |
| BODY | Enclose Sides w/ Sheet Metal |
| BRAKES | Electric Brakes on 2nd Axle |
| CARGO CONTROL | Additional Tie Loops |
| CARGO CONTROL | Stake Pocket |
| COUPLERS | 2" Forged Coupler |
| COUPLERS | 2-5/16" Forged Coupler |
| COUPLERS | 2-5/16" Stamped Coupler |
| JACKS | 2,000# Fold-Up Jack |
| RAMPS | 4 Slide-In Angle Ramps |
| RAMPS | 4 Tall Rear Rampgate w/ Coil Spring Assist |
| RAMPS | 4" Tall Bi-Fold Rear Rampgate w/Coil Spring Assist |
| RAMPS | 5 Tall Rear Rampgate W/ Coil Spring Assist |
| TIRE/WHEEL | Spare Tire (ST205/75R-15 LR-C) |
| TIRE/WHEEL | Spare Tire Mount (Side) |
